UPS26-99F Grundfos Circulation Pump - New - $235 (Billings)
QR Code Link to This Post

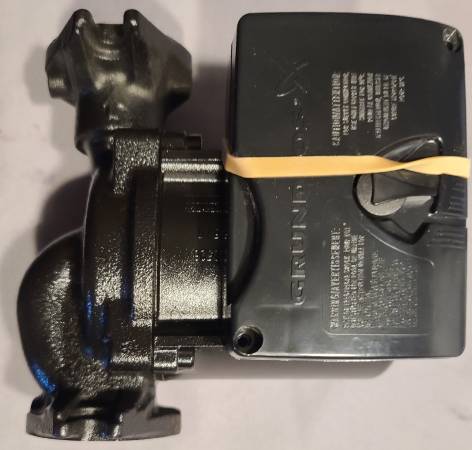

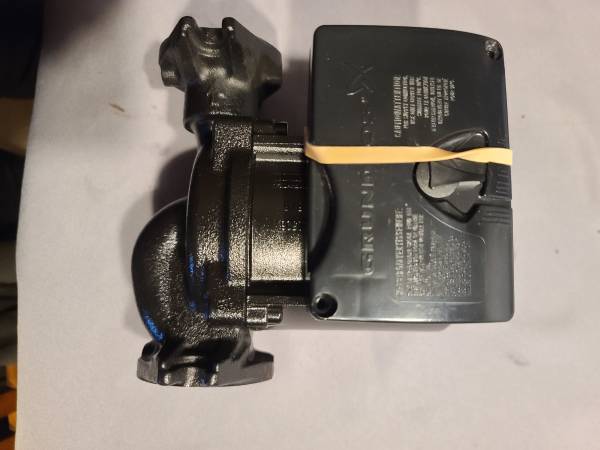

UPS26-99F Grundfos circulation water pump, New in Box, Price Reduced $235 OBO, show contact info Call or Text, Will Not Reply to Emails!
Manufacturer's Product Details:
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The pump has 3-step speed selector.
The pump is characterized by:
Ceramic shaft and radial bearings.
Carbon axial bearing.
Stainless steel rotor can and bearing plate.
Corrosion-resistant impeller, Composite.
Cast iron pump housing.
Manufacturer's Product Specifications:
The motor is a 1-phase motor. No additional motor protection is required.
Liquid:
Pumped liquid: Water
Liquid temperature range: 2 .. 110 °C
Selected liquid temperature: 60 °C
Density: 983.2 kg/m³
Technical:
Rated flow: 4.02 m³/h
Rated head: 5.018 m
Approvals: CUL
Materials:
Pump housing: Cast iron
EN 1561 EN-GJL-200
ASTM A48-30B
Impeller: Composite
PES+30% GF
Installation:
Range of ambient temperature: 2 .. 40 °C
Amb. max at 80 dgr C liquid: 80 °C
Maximum operating pressure: 10 bar
Type of connection: 2-BOLT FLANGE
Pipe connection: 2-BOLT FLANGE
Pressure rating for connection: PN 10
Port-to-port length: 165 mm
Electrical data:
Power input in speed 1: 150 W
Power input in speed 2: 179 W
Max. power input: 197 W
Mains frequency: 60 Hz
Rated voltage: 1 x 115 V
Current in speed 1: 1.3 A
Current in speed 2: 1.5 A
Current in speed 3: 1.8 A
Capacitor size - run: 20 µF/180 V
Number of poles: 2
Insulation class (IEC 85): F
Ex-protection standard: CONTACT
Others:
Terminal box position: 9H
Net weight: 4.3 kg
Gross weight: 4.64 kg
